Hirose FH53 0.2mm Pitch FPC Connectors

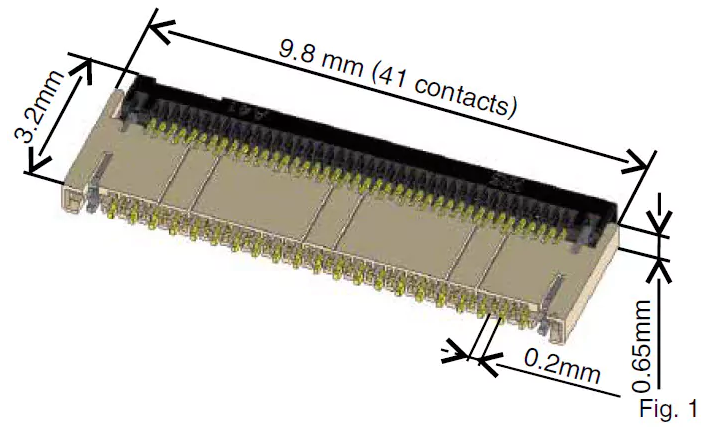

Hirose Electric FH53 0.2mm Pitch FPC Connectors feature a super thin design that results in a 0.65mm mounted height. FH53 combines a narrow pitch (0.2mm) and depth (3.2mm with the actuator in the locked position) to maximize available board space. Hirose FH53 connectors use differential pairs of identical contacts to support high-speed transmission. This FPC connector series also complies with eDP (ver. 1.3) and MIPI (D-PHY) standards.

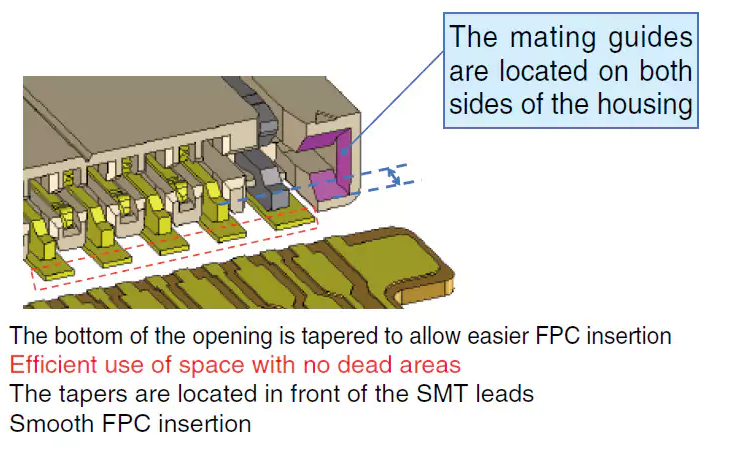

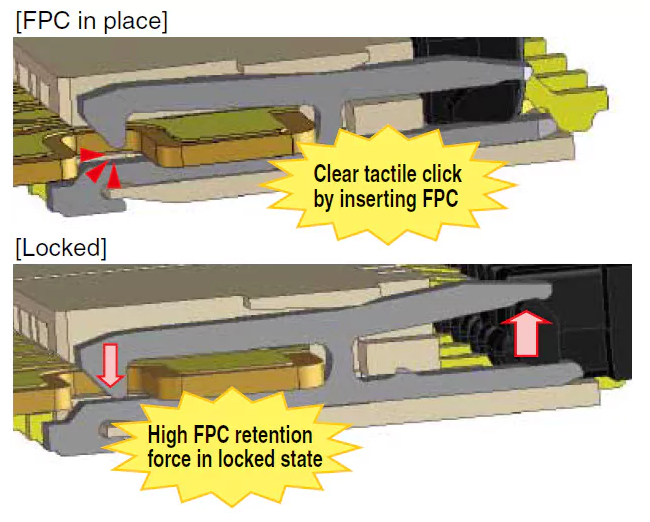

FH53 also features multi-functioning chucking metal for FPC temporary holding and improved connection reliability. The connectors also provide movable lock metal, allowing horizontal FPC insertion and withdrawal.
