Hirose Electric DF58 Wire-to-Board Connectors HRS代理商 HIROSE代理商 TOPSION

Hirose Electric DF58 Wire-to-Board Connectors

Hirose Electric DF58 Wire-to-Board Connectors are low profile, 1.0mm stacking height connectors for small-sized devices. DF58 connectors provide leveling of the vertical mating cable. This Hirose series features a proprietary ViSe (Vertical-insertion Swing-extraction) Lock design that strengthens the cable side lock. ViSe Lock prevents cables from being easily disconnected due to tough routing or an excessive load. DF58 connectors offer high current capability up to 3.0A and are designed for power supply applications.



Features

  • Small-sized, low profile connector with 1.0mm stacking height

  • Leveling of the vertical mating cable

    • Vertical insertion of the connector for mating enhances the assembly operation within device


  • Proprietary ViSe Lock design

    • Prevents the cables from being easily disconnected due to tough routing or an excessive load


  • High current capability up the maximum of 3.0A

  • High reliability contact design

    • Effective mating length of 0.29mm achieved despite low profile 1.0mm stacking height

    • 2-point clipping contact stabilizes contact resistance


  • Halogen-free

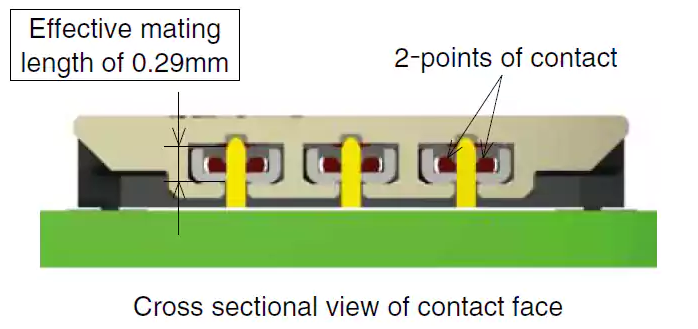

Contact Design

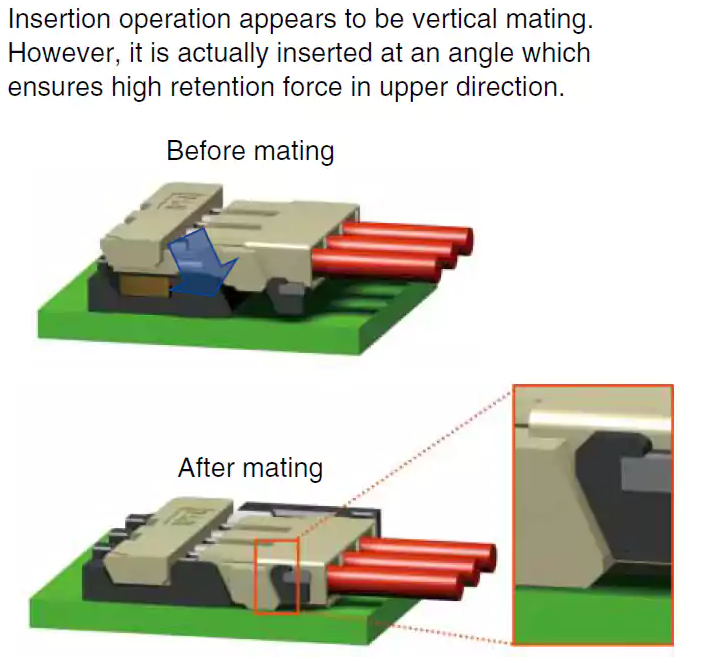

Description of the ViSe Lock Design


Small-Sized, Low-Profile Connector
