库存中心当前位置：首页>SM02B-ZESS-TB(LF)(SN)
实时供货
库存：68529 PCS可立即发货
货期：Factory Lead-Time:8-10 Weeks
输入数量
最少：1
定价（￥）（未税）
人民币(￥)美元($)
| - ： | ¥ 1.2000 |
|---|
| - ： | $ |
|---|

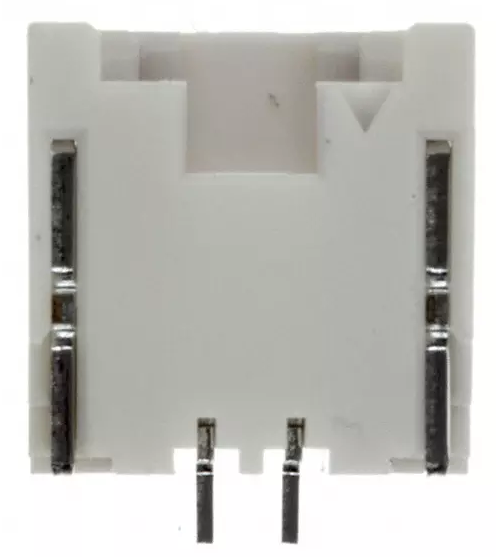

图片仅供参考，请参考产品描述
- Topsion零件编号：
- 816-SM02B-ZESS-TB(LF)(SN)
- 型号：
- SM02B-ZESS-TB(LF)(SN)
- 描述：
- CONN HEADER SMD R/A 2POS 1.5MM
- PDF：
- 下载
- 库存：
- 68529 PCS
暂无参数
其它资料
| Product Attributes | Select All | |
| Categories | Connectors, Interconnects | |
|---|---|---|
| Rectangular Connectors - Headers, Male Pins | ||
| Manufacturer | JST Sales America Inc. | |
| Series | ZE | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | Header | |
| Contact Type | Outer Shroud Contact | |
| Pitch - Mating | 0.059" (1.50mm) | |
| Number of Positions | 2 | |
| Number of Rows | 1 | |
| Row Spacing - Mating | - | |
| Number of Positions Loaded | All | |
| Style | Board to Cable/Wire | |
| Shrouding | Shrouded - 4 Wall | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Fastening Type | Locking Ramp | |
| Contact Length - Mating | - | |
| Contact Length - Post | - | |
| Overall Contact Length | - | |
| Insulation Height | 0.228" (5.80mm) | |
| Contact Shape | Rectangular | |
| Contact Finish - Mating | Tin | |
| Contact Finish Thickness - Mating | - | |
| Contact Finish - Post | Tin | |
| Contact Material | Copper Alloy | |
| Insulation Material | Polyamide (PA), Nylon | |
| Features | Solder Retention | |
| Operating Temperature | -25°C ~ 85°C | |
| Ingress Protection | - | |
| Material Flammability Rating | UL94 V-0 | |
| Insulation Color | Natural | |
| Current Rating | 2A | |
| Voltage Rating | 100V | |
| Mated Stacking Heights | 5.8mm | |
| Contact Finish Thickness - Post | - | |
| Applications | - |
